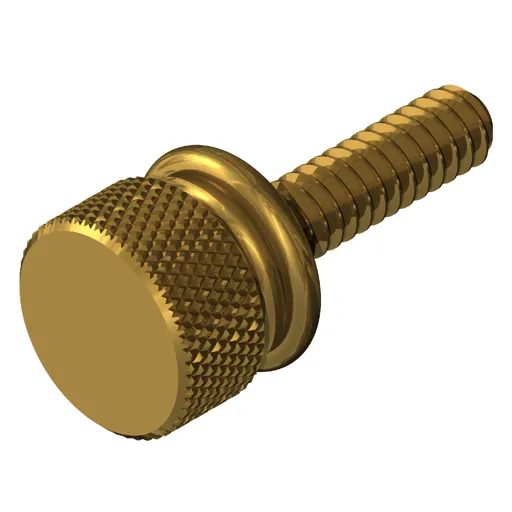

10.0mm Brass Round Washer Face Thumb Screw
Part ID: BR5442-00
Technical Specifications
| Material Grade (Alloy): |
Brass 360 (ASTM-B-116, QQ-B-626) 353 (ASTM-B-116) |
|---|---|
| Profile | Round |
| Overall Length | 16mm |
| Male Thread | M3.0x0.5 |
| Thread Length | 11mm |
| Head Diameter | 10mm |
|---|---|
| Head Length | 5mm |
| Washer Diameter | 9.5mm |
| Washer Length | 3.175mm |
| Finish Desc. (Spec) |
Unplated (Plain) |
| Compliant To | RoHS, WEEE, Conflict Minerals |
Product Description
Lyn-Tron's Washer Thumb Screws are designed to be installed by hand rather than by hand tools or power tools. The high-quality knurl provides a non-slip surface to grip onto. In addition, the washer face provides a decorative appearance, but also adds clearance between the head and mating part making these screws easy to unscrew compared to a plain thumb screw. The round shape provide a nice finished look. Brass is corrosion resistant, nonmagnetic, and easily machinable. Base metal is yellow, but many plating options are available when different colors are required.
Stock and Lead Time
| Stock | 0 | Available |
| Manufacture Lead Time | 11 | Weeks |
Pricing as Unplated
| Quantity | Online Price |
|---|---|
| 100 | 2.594 |
| 250 | 2.229 |
| 500 | 1.868 |
| 1,000 | 1.400 |
| 2,500 | 1.257 |
| 5,000 | 1.194 |
| 10,000 | 1.142 |
If you wish to see distributor prices, login or create an account and request to be approved as a distributor.
To order, please send a purchase order to info@lyntron.com or contact your local distributor. Orders may be adjusted to meet line and/or order minimums. See general terms for details.
