Material Specifications

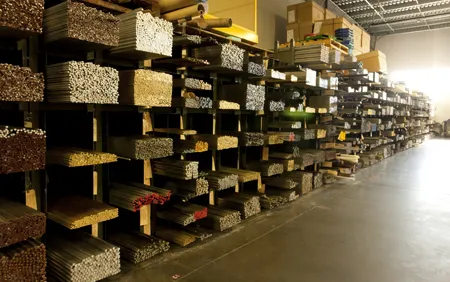

Lyn-Tron offers a vast variety of materials readily available for machining. Information about current material mill specifications can be found below in our Material Mill Specifications Matrix. Lyn-Tron is not merely limited to the mill specifications listed in the accompanying matrix.
In fact, Lyn-Tron is here to service all of your custom part needs. We welcome all custom/non-standard material requests and are willing to provide pricing with fast turn around times.
While Federal and Military specifications can have their own standards some do call out the ASTM specification directly. Lyn-Tron owns the documents associated with every ASTM specification, our license agreement denies us the ability to share any official ASTM documentation with our customers. The links below are provided so you may purchase your own copy of the ASTM specification that Lyn-Tron adheres to.
Material Specification Matrix
| Material Description | Lyn-Tron Material Code |
Material Mill Specifications |
|
|---|---|---|---|
| Aluminum | AL | ASTM-B-211 QQ-A-225/3 QQ-A-225/8 QQ-A-225/9 |
|
| Aluminum (RoHS Compliant) | AA | ASTM-B-211 QQ-A-225/3 QQ-A-225/6 QQ-A-225/9 |
|
| Brass (RoHS Compliant) | BR | ASTM-B-16 QQ-B-626 |
|
| Nylon (RoHS Compliant) Flammability: UL 94 V-2 |
NY | Shape |
LP-410A |
| ASTM-D5989 | |||
| Resin | MIL-P-46060 | ||
| ASTM-D4066 | |||
| Stainless Steel (RoHS Compliant) | SS | ASTM-A-582 | |
| Steel (RoHS Compliant) | ST | ASTM-A-108 AA-S-637 |
|
NAS Material Specification Matrix
| Material Description | NAS Material Code |
Material Mill Specifications |
|
|---|---|---|---|
| Aluminum (RoHS Compliant) | DD |
QQ-A-225/6 | |
| Aluminum (RoHS Compliant) |
A AC |
QQ-A-225/3 QQ-A-225/6 QQ-A-225/8 |
|
| Brass (RoHS Compliant) |
B BT |
QQ-B-626 | |
| Nylon (RoHS Compliant) | NAS61
H |
LP-410 6/6 | |
| Stainless Steel (RoHS Compliant) | C T |
ASTM-A-582 | |
| Stainless Steel (RoHS Compliant) | E W |
ASTM-A-586 | |
| Steel (RoHS Compliant) | - |
MIL-S-6758 MIL-S-6050 MIL-S-6049 |
|
| Steel (RoHS Compliant) | NAS1830- | ASTM-A-108 |
|
