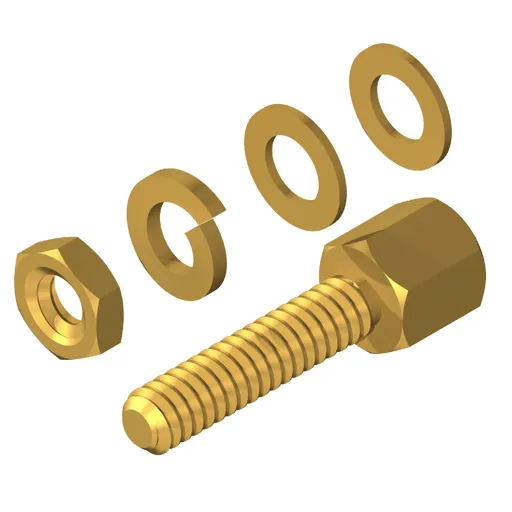

Jack Screw Bulk Kit, Hex, Unplated, Brass, #4-40, 3/16" Body Length
Part ID: BR9434-00
Technical Specifications
| Material Grade (Alloy): |
Brass 360 (ASTM-B-116, QQ-B-626) 353 (ASTM-B-116) |
|---|---|
| Profile | Hex |
| Outside Diameter | 3/16" |
| Body Length | 3/16" |
| Male Thread | #4-40 |
| Thread Length | 7/16" |
| Female Thread | #4-40 |
|---|---|
| Kit includes subcomponents |
BR9414-00
- quantity per kit: 1 BR300-00 - quantity per kit: 2 BR302-00 - quantity per kit: 1 BR400-00 - quantity per kit: 1 |
| Finish Desc. (Spec) |
Unplated (Plain) |
| Compliant To | RoHS, WEEE, Conflict Minerals |
Product Description
A Jack Screw is simply a 3/16” Hex, 4-40 Male-Female Standoff, that is 3/16” in length. What separates these is that you can choose the male-thread length that will best fit your application. These are also called Female Screw-Locks and are most commonly used in mounting D-Sub Connectors. Each Jack Screw is available as a stand-alone screw, but visit the Jackscrew Assembly Kit and Bulk Kit Sections to purchase the complete set of mounting hardware. The hex shape allows for greater torquing as the flat sides allow for wrench tightening. Brass is corrosion resistant, nonmagnetic, and easily machinable. Base metal is yellow, but many plating options are available when different colors are required.
Stock and Lead Time
| Stock | 0 | Available |
| Manufacture Lead Time | 11 | Weeks |
Pricing as Unplated
| Quantity | Online Price |
|---|---|
| 100 | 0.000 |
| 250 | 0.000 |
| 500 | 0.000 |
| 1,000 | 0.000 |
| 2,500 | 0.000 |
| 5,000 | 0.000 |
| 10,000 | 0.000 |
| 25,000 | 0.000 |
| 50,000 | 0.000 |
If you wish to see distributor prices, login or create an account and request to be approved as a distributor.
To order, please send a purchase order to info@lyntron.com or contact your local distributor. Orders may be adjusted to meet line and/or order minimums. See general terms for details.
