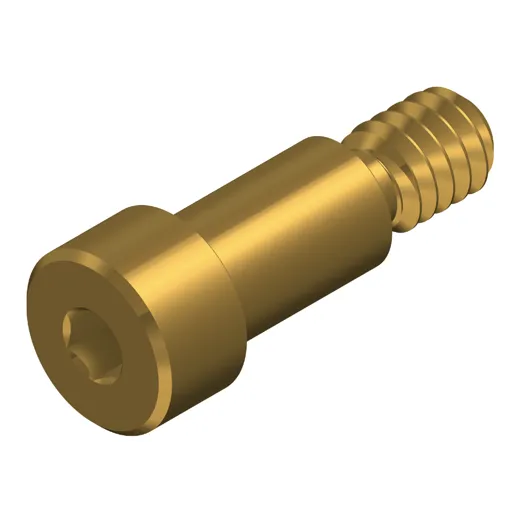

3/8" Brass Round Precision Shoulder Screw - Socket
Part ID: BR7441-00
Technical Specifications
| Material Grade (Alloy): |
Brass 360 (ASTM-B-116, QQ-B-626) 353 (ASTM-B-116) |
|---|---|
| Profile | Round |
| Overall Length | 0.937" |
| Male Thread | #10-32 |
| Thread Length | 1/4" |
| Head Diameter | 3/8" |
| Head Length | 3/16" |
|---|---|
| Shoulder Diameter | 1/4" |
| Shoulder Length | 1/2" |
| Socket Depth | 3/32" |
| Socket Width | 1/8" |
| Finish Desc. (Spec) |
Unplated (Plain) |
| Compliant To | RoHS, WEEE, Conflict Minerals |
Product Description
Shoulder Screws, sometimes referred to as Shoulder Bolts, tight tolerance shoulder screws, or Stripper Bolts, get their name from the unique shoulder found between the head and the threads of the screw. Lyn-Tron manufactures Precision Shoulder Screws, so named for the high tolerance (+/-0.0005) the shoulder diameter is held to. The round shape provide a nice finished look. Brass is corrosion resistant, nonmagnetic, and easily machinable. Base metal is yellow, but many plating options are available when different colors are required.
Stock and Lead Time
| Stock | 85 | Same Day |
| Manufacture Lead Time | 11 | Weeks |
Pricing as Unplated
| Quantity | Online Price |
|---|---|
| 100 | 3.044 |
| 250 | 2.618 |
| 500 | 2.192 |
| 1,000 | 1.644 |
| 2,500 | 1.475 |
| 5,000 | 1.400 |
| 10,000 | 1.338 |
If you wish to see distributor prices, login or create an account and request to be approved as a distributor.
To order, please send a purchase order to info@lyntron.com or contact your local distributor. Orders may be adjusted to meet line and/or order minimums. See general terms for details.
