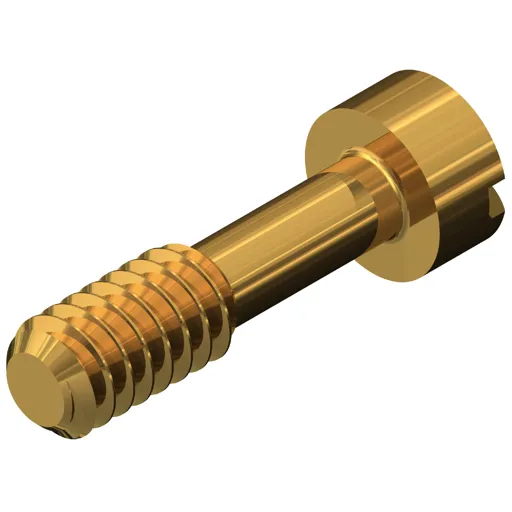

3.2mm Brass Round Captive Panel Screw - Type 4
Part ID: BR5771-00
Technical Specifications
| Material Grade (Alloy): |
Brass 360 (ASTM-B-116, QQ-B-626) 353 (ASTM-B-116) |
|---|---|
| Profile | Round |
| Overall Length | 18mm |
| Male Thread | M2.0x0.4 |
| Thread Length | 4mm |
| Head Diameter | 3.2mm |
| Head Length | 2mm |
| Shank OD | 1.5mm |
|---|---|
| Shank Length | 12mm |
| Under Head Length | 16mm |
| Slot Depth | 1.0mm |
| Slot Width | 0.8mm |
| Washer Length | 1.5mm |
| Finish Desc. (Spec) |
Unplated (Plain) |
| Compliant To | RoHS, WEEE, Conflict Minerals |
Product Description
The Captive Panel Screw type 4 is designed to remain attached even if unscrewed when used with a captive panel retainer. Type 4 Captive Panel Screws, like other types of captive panel screws, are most commonly used on control panel doors to keep them screwed shut during normal operating conditions. The round shape provide a nice finished look. Brass is corrosion resistant, nonmagnetic, and easily machinable. Base metal is yellow, but many plating options are available when different colors are required.
Stock and Lead Time
| Stock | 0 | Available |
| Manufacture Lead Time | 11 | Weeks |
Pricing as Unplated
| Quantity | Online Price |
|---|---|
| 100 | 2.085 |
| 250 | 1.794 |
| 500 | 1.503 |
| 1,000 | 1.127 |
| 2,500 | 1.013 |
| 5,000 | 0.960 |
| 10,000 | 0.920 |
If you wish to see distributor prices, login or create an account and request to be approved as a distributor.
To order, please send a purchase order to info@lyntron.com or contact your local distributor. Orders may be adjusted to meet line and/or order minimums. See general terms for details.
